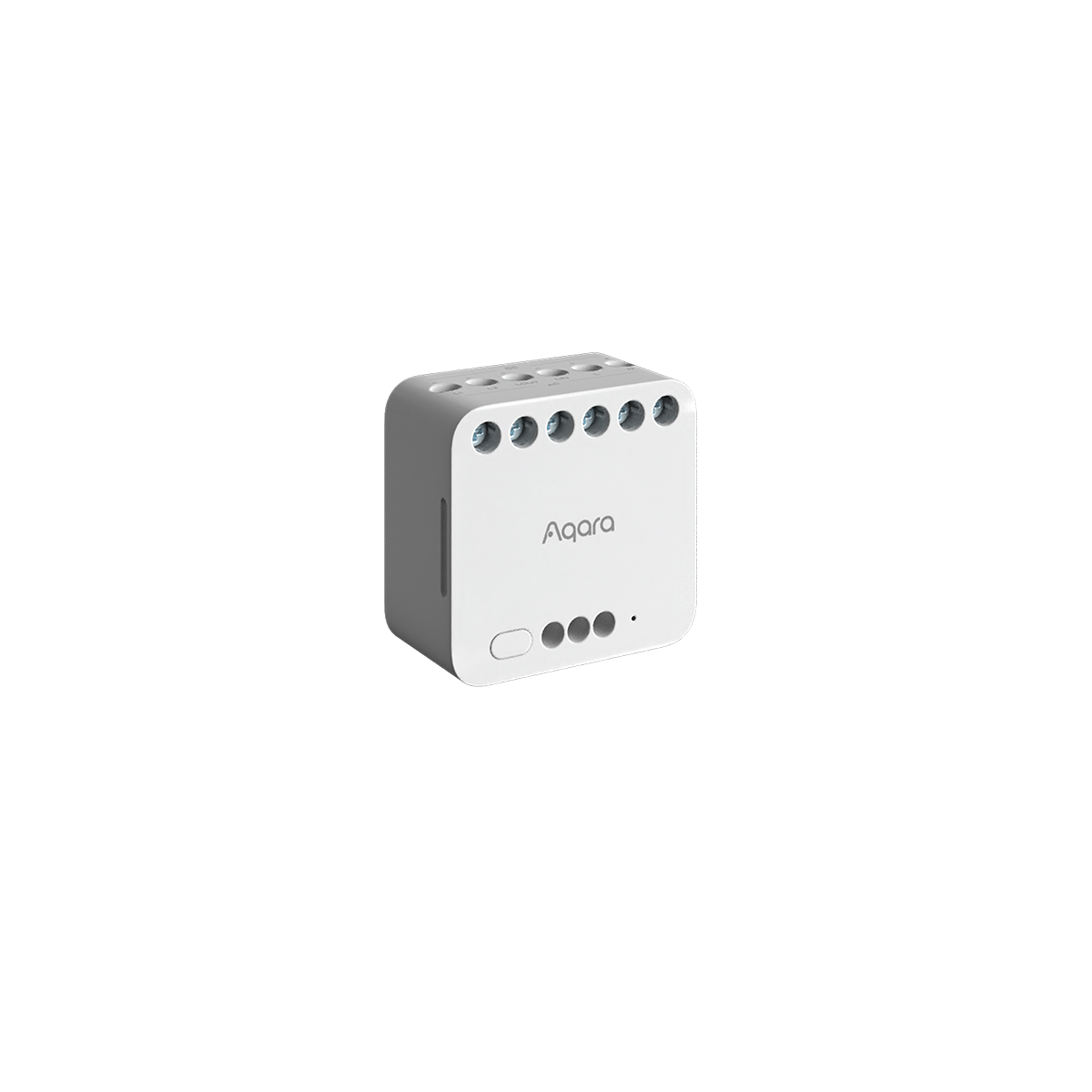

Aqara Dual Relay Module T2
Description
[Proximity]For a sturdy connection, ensure that the Aqara Dual Relay Module T2 is within 400 inches of the Aqara Zigbee hub, and the hub is within the same range from the Wi-Fi router. Additionally, make sure the hub and the router are on the same local area network (LAN). *Note: Requires a secured 2.4 gigahertz Wi-Fi network connection for Hub M2/ M1S/ E1/M1S Gen2 and Camera Hub G2H Pro, and 2.4/ 5 GHz Wi-Fi for Camera Hub G3.(Wired connection via Ethernet RJ45 for Hub M2 is also supported).
[Dry Contact Mode] The Aqara Dual Relay Module T2 supports dry (or potential-free) contact mode with both pulse and on-off switching, which allows you to integrate a great variety of electrical devices such as boilers, garage doors and much more into your smart home setup. (*Note: Neutral wire is required.)
[Wireless Switch Mode & Interlock for Motor Control] The T2 offers easy and secure control of tubular motors, and can also function as a roller shade switch. Additionally, with the Wireless Switch Mode, the T2 can turn an existing wall switch into a scene controller without requiring any wiring changes. For example, a button can be designated for arming your wired doorbell or security system. This feature also allows integration of other wired sensors into your smart automations (AC only).
[Energy Saving & Power off Memory] Integrating advanced energy monitoring, the T2 can ensure you maintain optimal control over your energy consumption. (Note: The energy monitoring feature is only available in wet contact mode). Thanks to the Zigbee protocol, the T2 features ultra lower idle power consumption compared to Wi-Fi relays, leading to reduced energy costs. Additionally, equipped with a power-off memory function, the T2 retains its last state even after power interruptions.
[Electrical Safety & Flexible Installation] The T2 supports overheat protection, overload protection and a customizable power limit that automatically shuts off the device if consumption exceeds your specified settings, directly safeguarding your home and your energy footprint. Also, the T2 can be installed near a light, behind a switch* or wall outlet and even includes a DIN rail mount.
Specifications
Color: White
Compatible Platforms: Aqara, Apple Home, Alexa, Google Home, IFTTT
Wireless Protocol: Zigbee
Hub Required: Yes（Aqara Zigbee 3.0 HUB）
Item Net Weight: 0.13 Pounds / 60g
Operating Humidity: 0-95% RH, without condensation
Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Product Dimensions: 1.79 × 1.89 × 0.94 inches（45.5 × 48 × 24 mm）
Rated Parameters(AC): 100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent Lamp); Max. 1A, Max. 250W (LED, CFL Fluorescent Lamp); Max. 1A, Max. 1/4 HP (Motor) M.1.
Rated Parameters(DC): 24-30V: Max.10A, Max. 300W (Resistive Load); 30-60V: Max.1A, Max. 60W (Resistive Load);
Included Components
Dual Relay Module T2 × 1, User Manual × 1, DIN Rail Accessory × 1, Jumper Wire × 1
